EURO 38 & 59 Escape Hatches

EURO 38 & 59 round shaped portlights are available in two dimensions (Ø38cm & Ø59cm). They are white, round framed portlights with a thick frame made of UV-resistant high-grade ASA, providing
resistance to damage and chemical solvents. They have a UV resistant, 8mm thick plexiglass window, that can stay open. Designed for external use. Can be mounted both horizontally and vertically.
These hatches are mounted with hidden screws for discrete appearance. EPDM rubber gasket provides resistance to water.

Designed & produced in Italy.
CE approved by Rina.

Approvals

[195254] CE Type Certificate - Escape Hatches "EURO"
[195256] CE Type Certificate - Escape Hatches "EURO"

Manuals

Installation Instructions for Euro Hatches

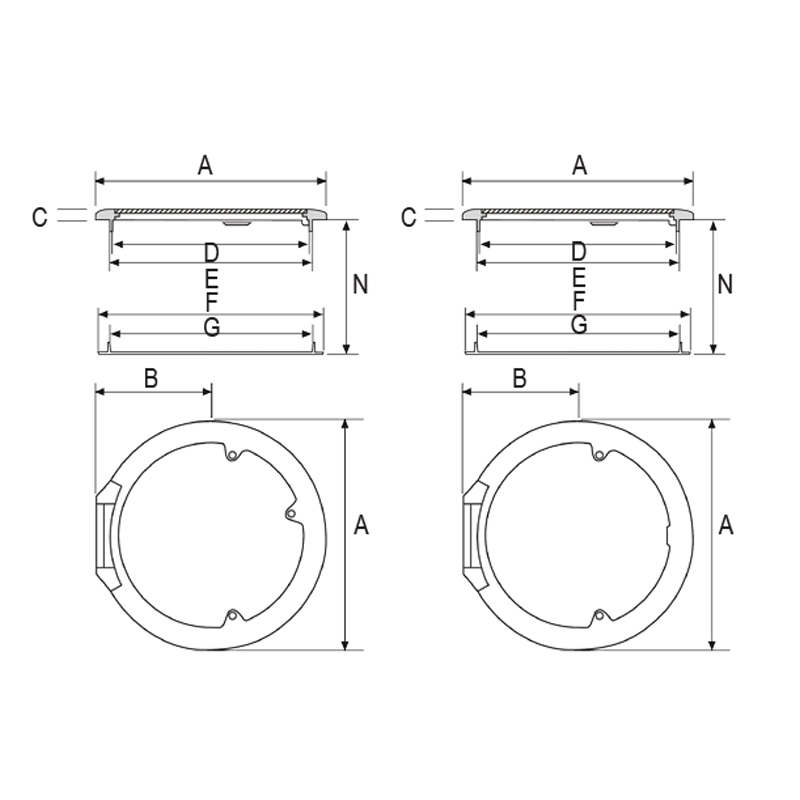

Code	Title	Description	Colour	A	B	C	D	E	F	G	N
195254	EURO 59 Escape Hatch	Euro Ø 59	White	590 mm	294.5 mm	27 mm	506 mm	518 mm	574 mm	521 mm	22.5 - 52.5 mm
195256	EURO 38 Escape Hatch	Euro Ø 38	White	378 mm	189 mm	26 mm	290 mm	303 mm	362 mm	309 mm	22.5 - 52.5 mm
