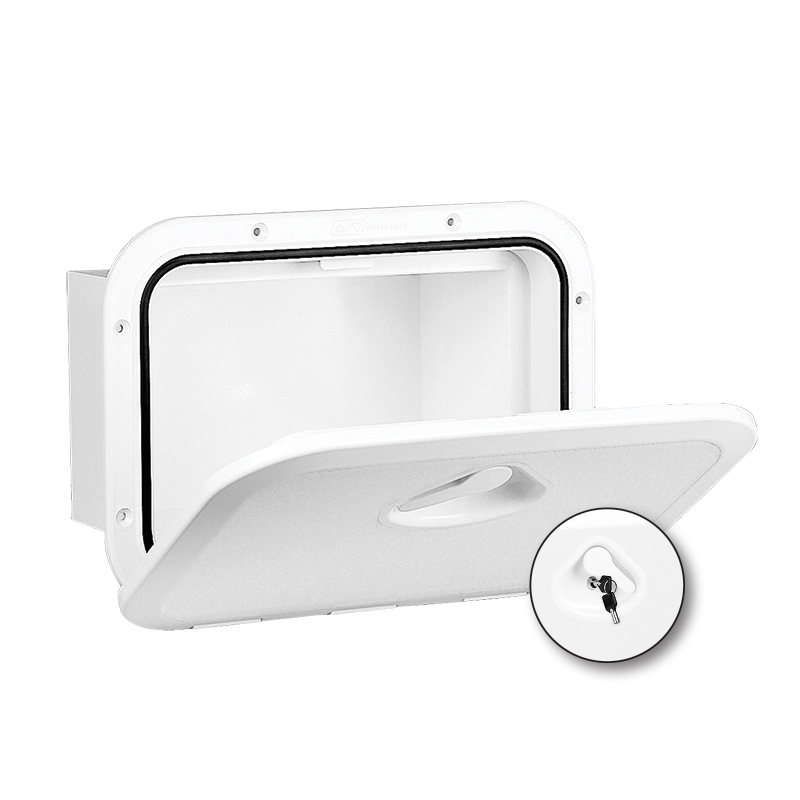

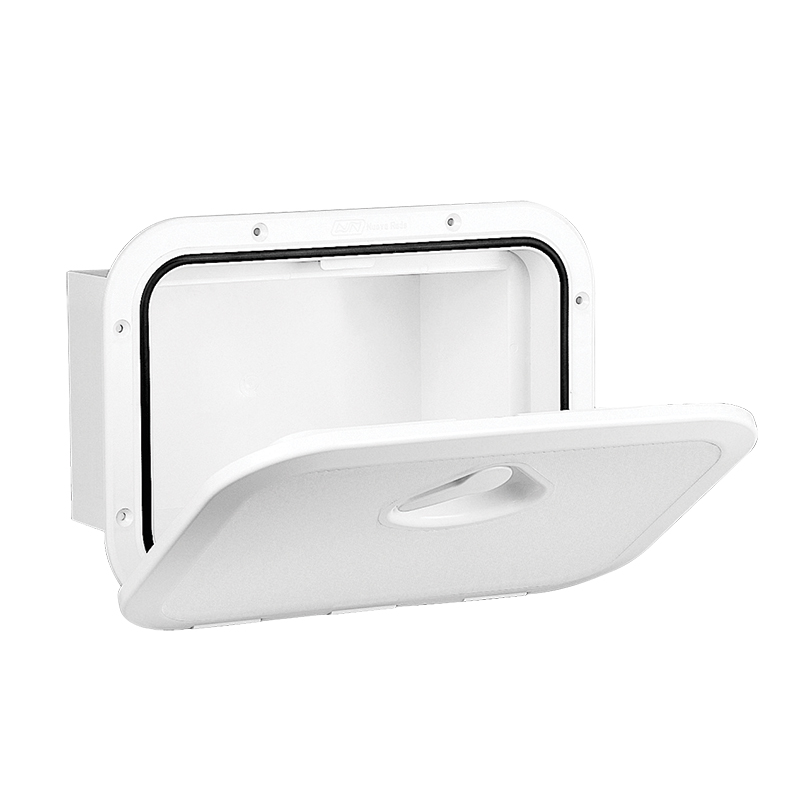

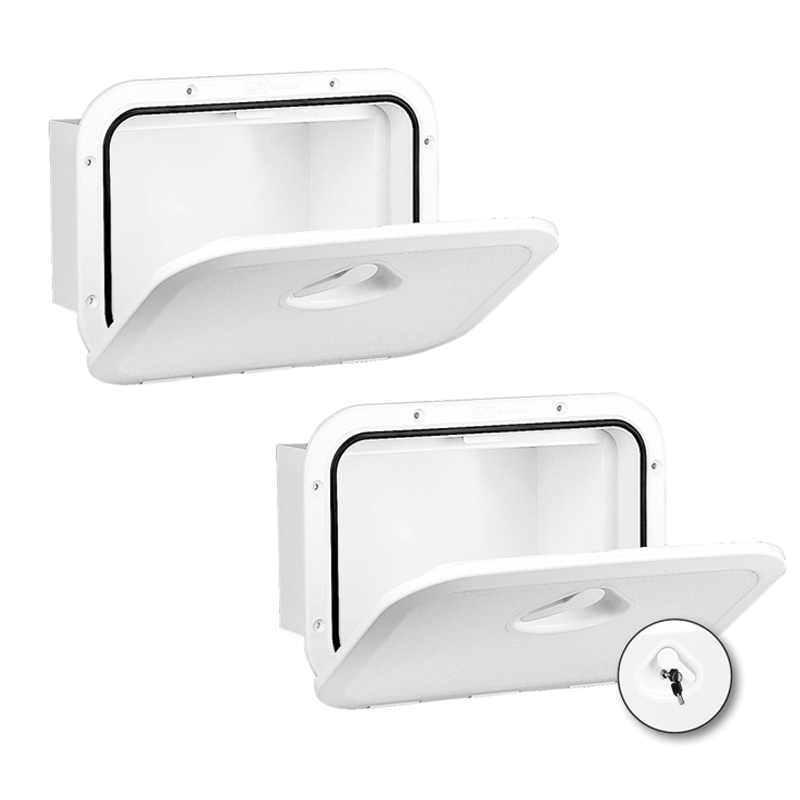

TOP LINE Storage Hatches (270 x 375mm)
Designed and produced in Italy, our high quality TOP LINE storage deck hatches are ideal for every sailboat or yacht. Available in dimensions of 270 x 375 mm and in a variety of colors (white,grey, cream, black), these hatches can cover the needs of boats of any size.
They are made of UV-resistant high-grade ASA plastic, in order to provide resistance to damage and chemical solvents. Designed for external use. UV-resistant cover and frame, with a 180⁰ opening door and a durable handle. They are specially designed with a non-skid surface and can be mounted both horizontally and vertically. These hatches are mounted with hidden screws for discrete appearance. EPDM rubber gasket, provides resistance to water.
This product guarantees easy opening and easy access when needed. Offers a color variety of handles (white, grey, cream). Option with lock can be provided (non ISO).
Our code 196281 is CE ISO 12216 certified.
Code | Title | Model | Colour | A | B | C | D | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|---|---|---|---|
196281 | TOP LINE Storage Hatch, White, 270x375mm | Standard | White | 270mm | 375mm | 193mm | 293mm | 270mm | 170mm | 160mm | 210mm | 305mm |
196282 | TOP LINE Storage Hatch w/Lock, White, 270x375mm | With Lock | White | 270mm | 375mm | 193mm | 293mm | 270mm | 170mm | 160mm | 210mm | 305mm |
196288 | TOP LINE Storage Hatch, Cream, 270x375mm | Standard | Cream | 270mm | 375mm | 193mm | 293mm | 270mm | 170mm | 160mm | 210mm | 305mm |
196295 | TOP LINE Storage Hatch, Grey, 270x375mm | Standard | Grey | 270mm | 375mm | 193mm | 293mm | 270mm | 170mm | 160mm | 210mm | 305mm |
198055 | TOP LINE Storage Hatch, Black, 270x375mm | Standard | Black | 270mm | 375mm | 193mm | 293mm | 270mm | 170mm | 160mm | 210mm | 305mm |
198056 | TOP LINE Storage Hatch, White, 270x375mm ISO12216 | Standard | White | 270mm | 375mm | 193mm | 293mm | 270mm | 170mm | 160mm | 210mm | 305mm |
