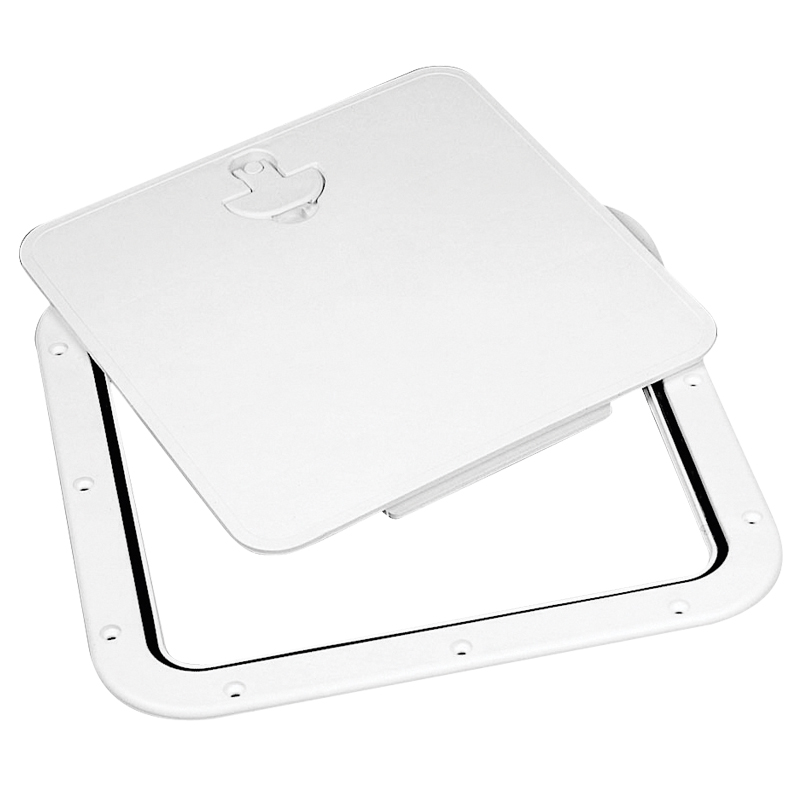

Inspection Hatches with Removable Cover (380 x 380mm)
Made of UV-resistant high-grade ASA, in order to provide resistance to damage and chemical solvents. It is available in dimensions of 306 x 356mm and 380 x 380mm, in two colours (white and grey).
Designed for external use. UV-resistant cover and frame, with removable cover for ease of use and a ‘T’ shaped handle. It is specially designed with a non-skid surface and can be mounted both horizontally
and vertically. EPDM rubber gasket provides resistance to water. It guarantees easy opening and easy access when needed.
Option with lock can be also provided. Designed & produced in Italy.
Manuals

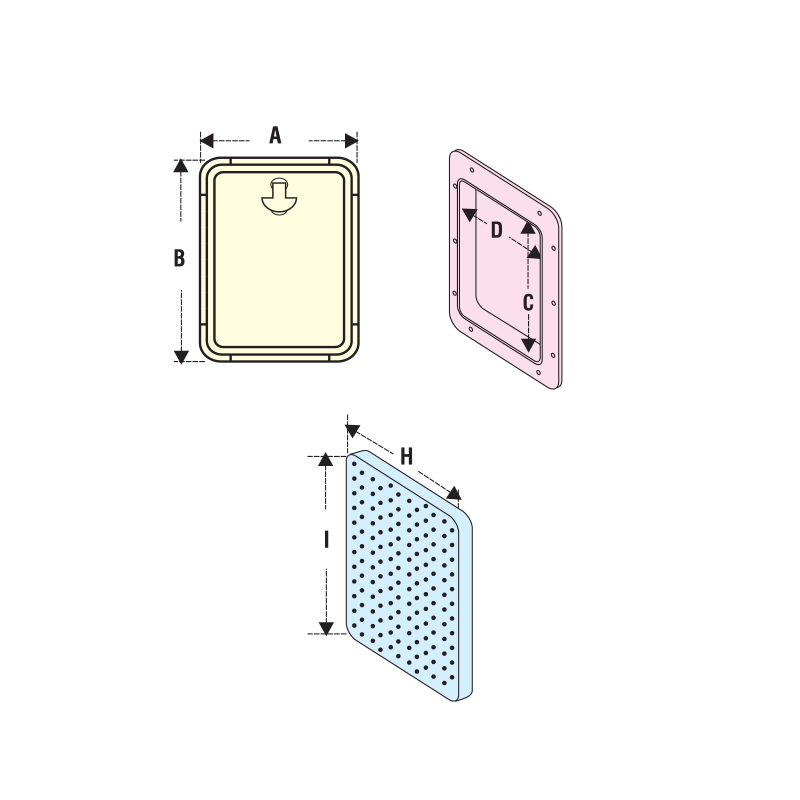

| Code | Title | Model | Colour | A | B | C | D | H | I |
|---|---|---|---|---|---|---|---|---|---|
45175
|
Inspection Hatch w/Removable Cover, White, 380x380mm | Standard | White | 380mm | 380mm | 316mm | 316mm | 325mm | 325mm |
|
45176
|
Inspection Hatch w/Removable Cover, Grey, 380x380mm | Standard | Grey | 380mm | 380mm | 316mm | 316mm | 325mm | 325mm |
45178
|
Inspection Hatch w/Rem.Cover&Lock, White, 380x380mm | With Lock | White | 380mm | 380mm | 316mm | 316mm | 325mm | 325mm |
