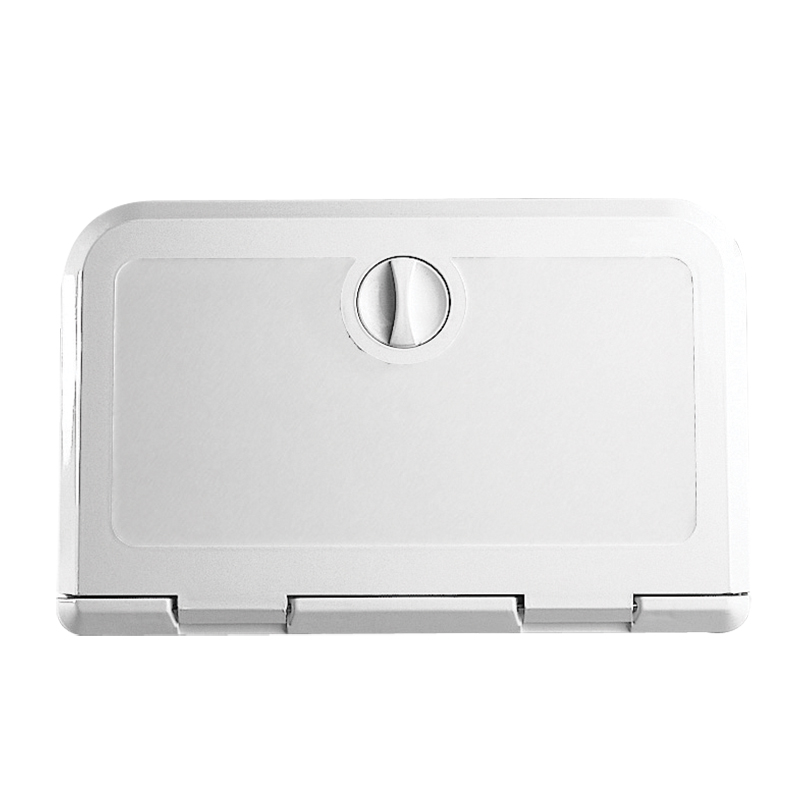

Hatches for VHF/RadioCD
Available in dimensions of 180 x 285 mm, in white colour, ideal for housing your VHF/RadioCD. Made of UV-resistant high-grade ASA, it provides resistance to damage and chemical solvents. Designed for external use. UVresistant frame and cover with a 150ο opening door and a durable handle. It is specially designed with a non-skid surface and can be mounted both horizontally and vertically. This hatch is mounted with hidden screws for discrete appearance. EPDM rubber gasket provides resistance to water. It guarantees easy opening and easy access when needed.
Option with lock can be also provided. Designed & produced in Italy.

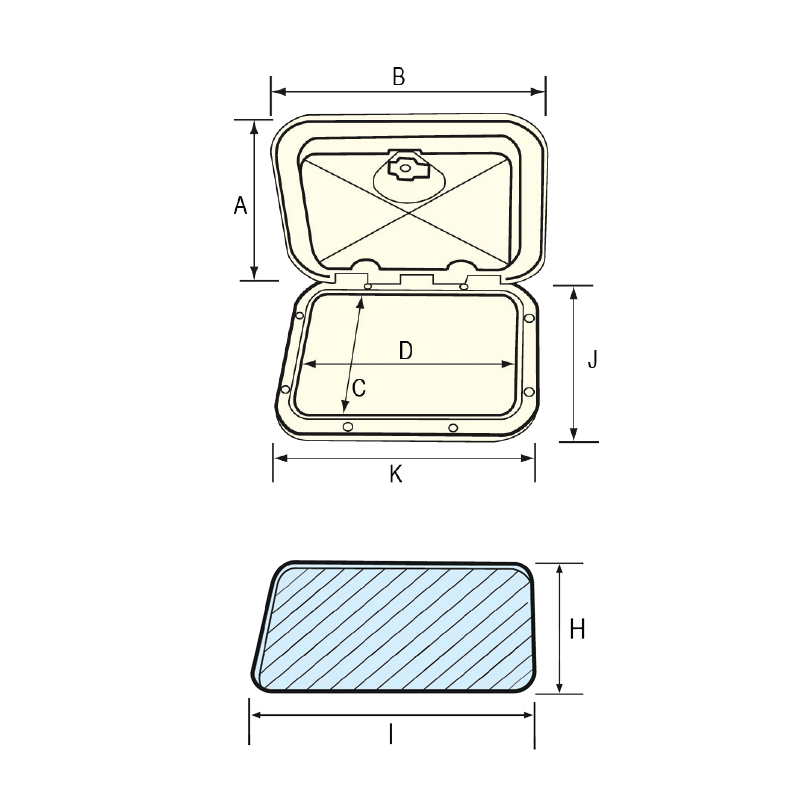

| Code | Title | Model | Colour | A | B | C | D | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
196361
|
Hatch for VHF/RadioCD, 180x285mm, White | Standard | White | 180mm | 285mm | 108mm | 226mm | 130mm | 250mm | 160mm | 279mm |
196362
|

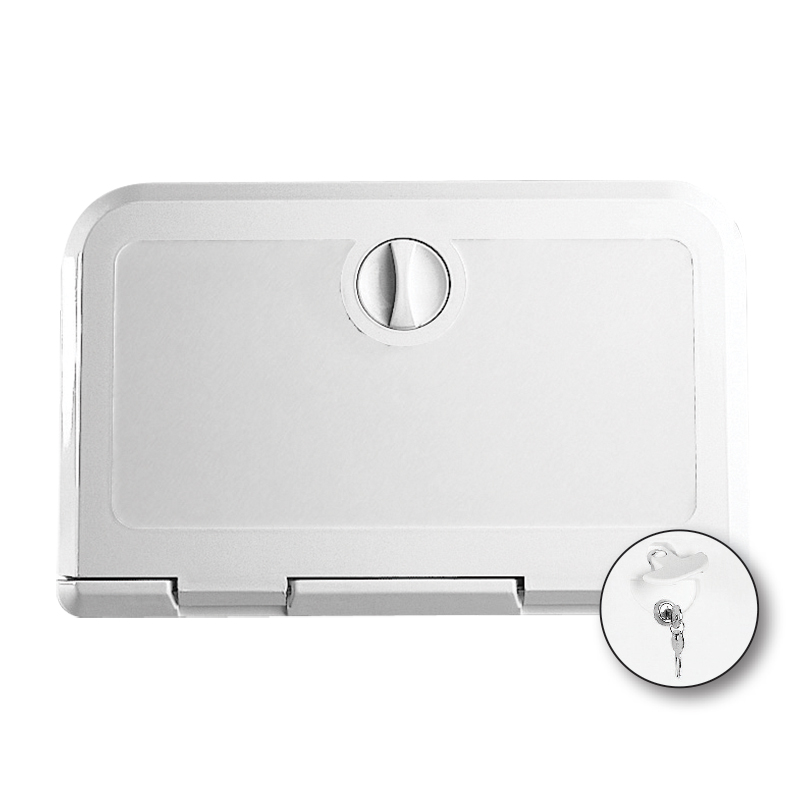

Hatch for VHF/RadioCD, w/Lock, 180x285mm, White | With Lock | White | 180mm | 285mm | 108mm | 226mm | 130mm | 250mm | 160mm | 279mm |
|
196366
|
Hatch for VHF/RadioCD, 180x285mm, Cream | Standard | Cream | 180mm | 285mm | 108mm | 226mm | 130mm | 250mm | 160mm | 279mm |
