ERCOLE Fuel Tanks
ERCOLE line of horizontal fuel tanks is made of polyethylene material in black colour to avoid rust and has a longer lifetime, contrary to metal tanks. This line consists of a full range of 9 models complying with international standards and is used for fuel collection and storage. All contain a fuel output for Ø8mm hose and a fuel supply input that is either threaded with a cap, either with a vertical outlet for Ø38mm hose, either with an 45o-angled outlet for Ø38mm hose. Pre-cut for tank level sensor
CE approved according to Directive 2003/44/EC.
For customized solutions (color or dimensions) please contact the Nuova Rade R&D team.
Approvals
Optional Fittings, Connectors & Sensors
Manuals
| Code | Title | Type | Capacity | Length | Width | Height | Connector | Deck Filler |
|---|---|---|---|---|---|---|---|---|

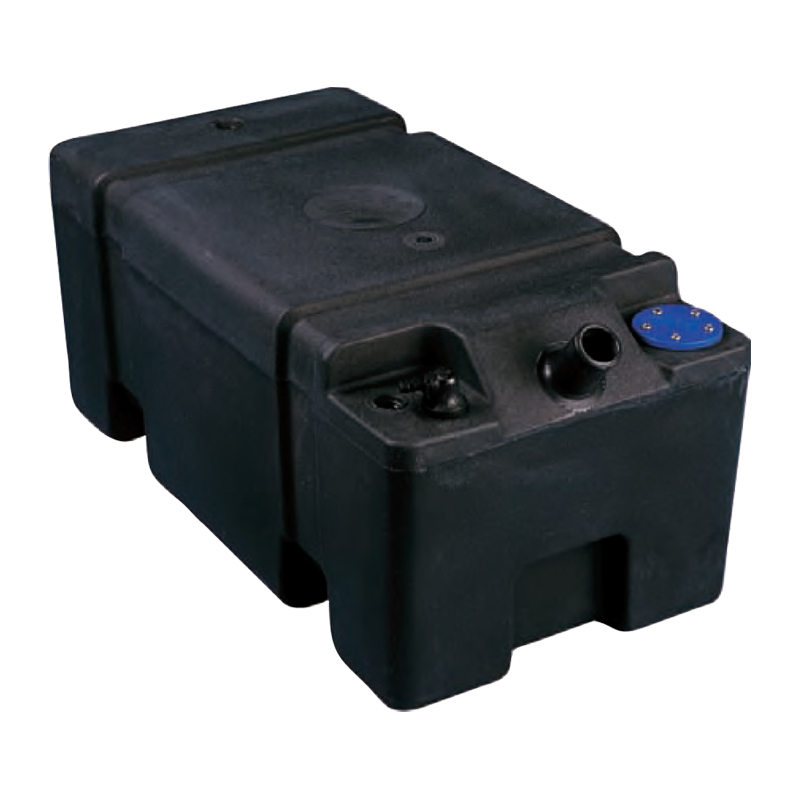

35008
|
ERCOLE Tank Fuel 55lt w/o Cap, 45° Deckfill, L.650mm | Without cap | 55lt | 650mm | 350mm | 300mm | 8mm | 45o Ø 35mm |

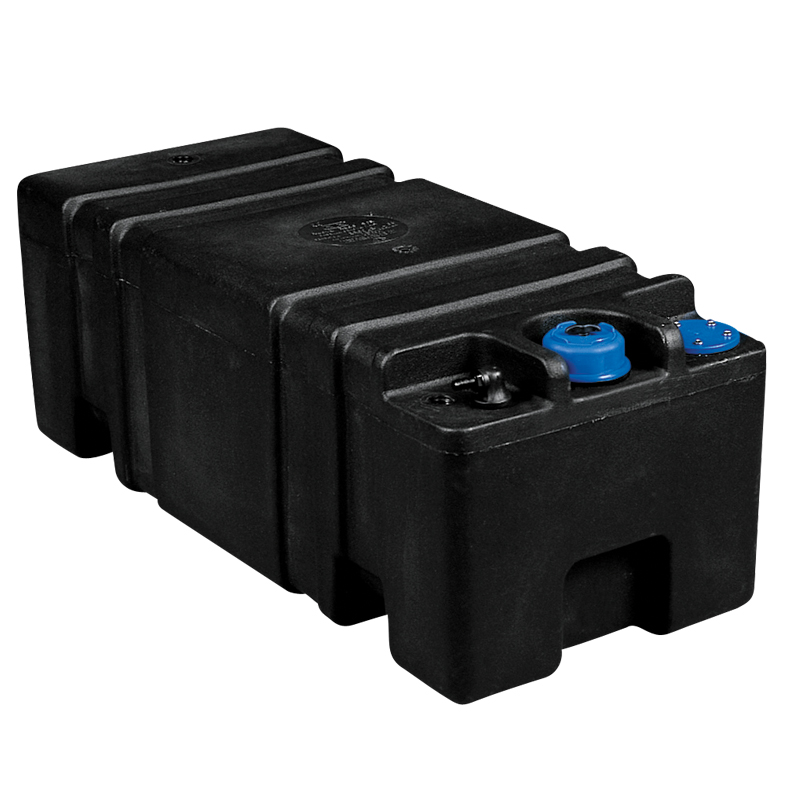

44797
|
ERCOLE Tank Fuel 41lt w/Filler Cap Threaded, L.500mm | With filler cap | 41lt | 500mm | 350mm | 300mm | 8mm | Thread Ø 50mm |
|
44799
|
ERCOLE Tank Fuel 55lt w/Filler Cap Threaded, L.650mm | With filler cap | 55lt | 650mm | 350mm | 300mm | 8mm | Thread Ø 50mm |
|
44801
|
ERCOLE Tank Fuel 69lt w/Filler Cap Threaded, L.800mm | With filler cap | 69lt | 800mm | 350mm | 300mm | 8mm | Thread Ø 50mm |

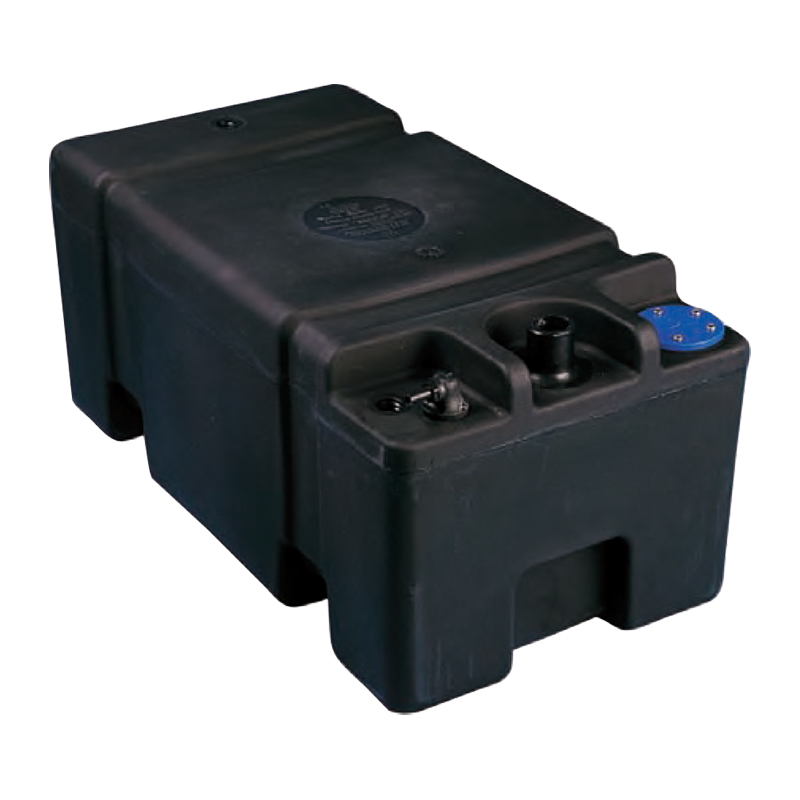

50195
|
ERCOLE Tank Fuel 41lt w/o Cap, Str.Deckfill, L.500mm | Without cap | 41lt | 500mm | 350mm | 300mm | 8mm | Straight Ø 38mm |
|
50196
|
ERCOLE Tank Fuel 41lt w/o Cap, 45° Deckfill, L.500mm | Without cap | 41lt | 500mm | 350mm | 300mm | 8mm | 45o Ø 35mm |
|
50199
|
ERCOLE Tank Fuel 55lt w/o Cap, Str.Deckfill, L.650mm | Without cap | 55lt | 650mm | 350mm | 300mm | 8mm | Straight Ø 38mm |
|
50205
|
ERCOLE Tank Fuel 69lt w/o Cap, Str.Deckfill, L.800mm | Without cap | 69lt | 800mm | 350mm | 300mm | 8mm | Straight Ø 38mm |
|
50206
|
ERCOLE Tank Fuel 69lt w/o Cap, 45° Deckfill, L.800mm | Without cap | 69lt | 800mm | 350mm | 300mm | 8mm | 45o Ø 35mm |
