BORA Fresh Water Tanks

BORA Fresh Water Tanks
Click here to zoom!

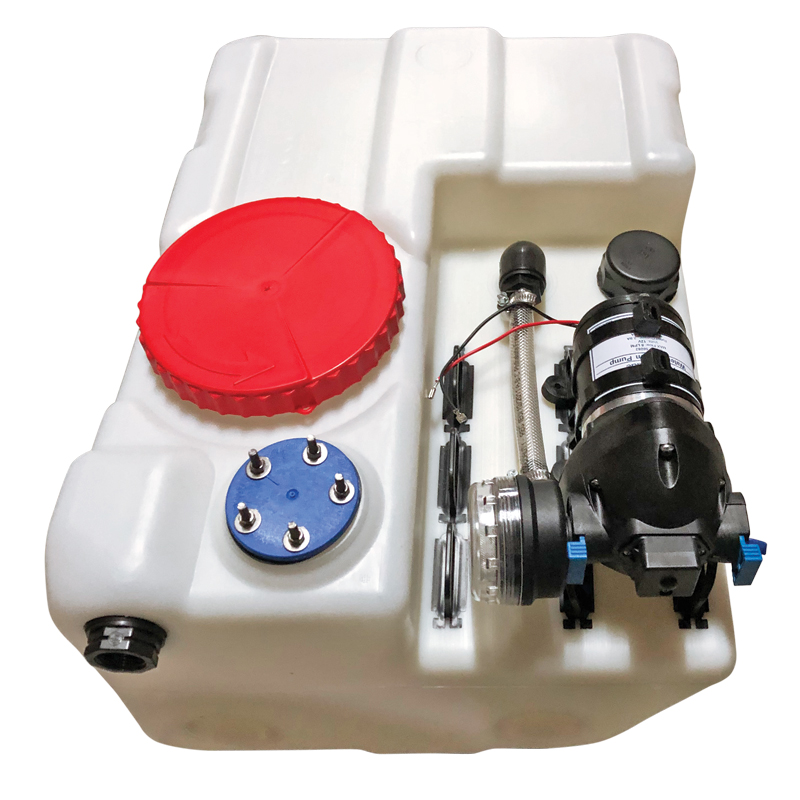

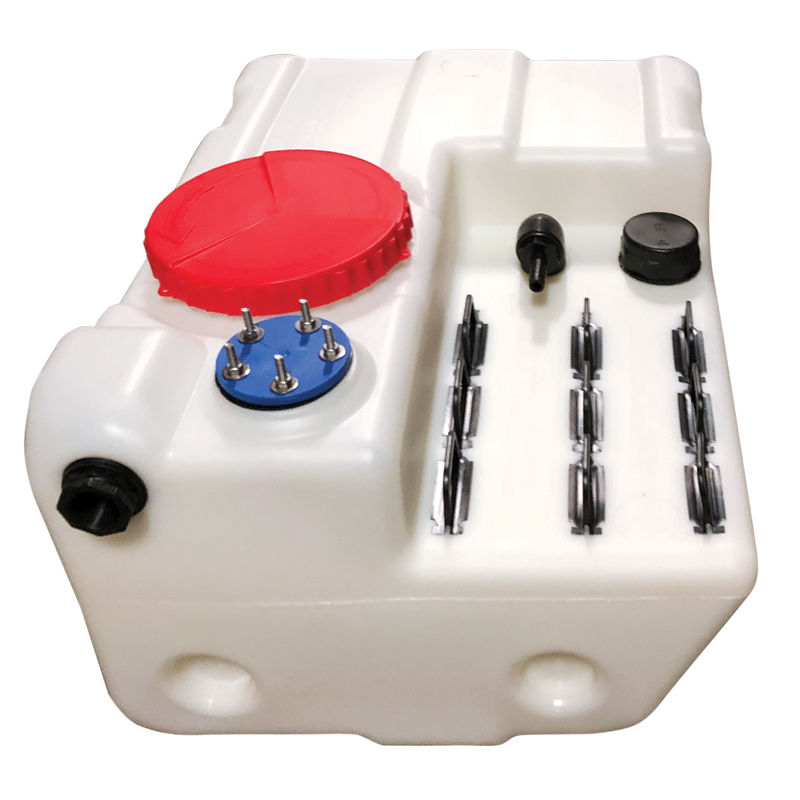

BORA line of horizontal fresh water tanks is made of high-density polyethylene material, in white colour. Polyethylene material is used to prevent any taste alteration of fresh water. The line consists of a full-size range of 40L, 60L, 80L and 100L, complying with international standards and is used for fresh water collection and storage. This fresh water tank is available in two options. One option is provided with only the holding base tank alone and the other option comes with a complete set, that includes a holding tank, a self-priming pump (12V) and fittings. A large range of accessories is available, such as pump, sensor, vented loop, valve, filter and deck filler.

Available customised solutions (colour or dimensions) upon request & sufficient quantities.



Manuals

Optional Fittings, Connectors & Sensors

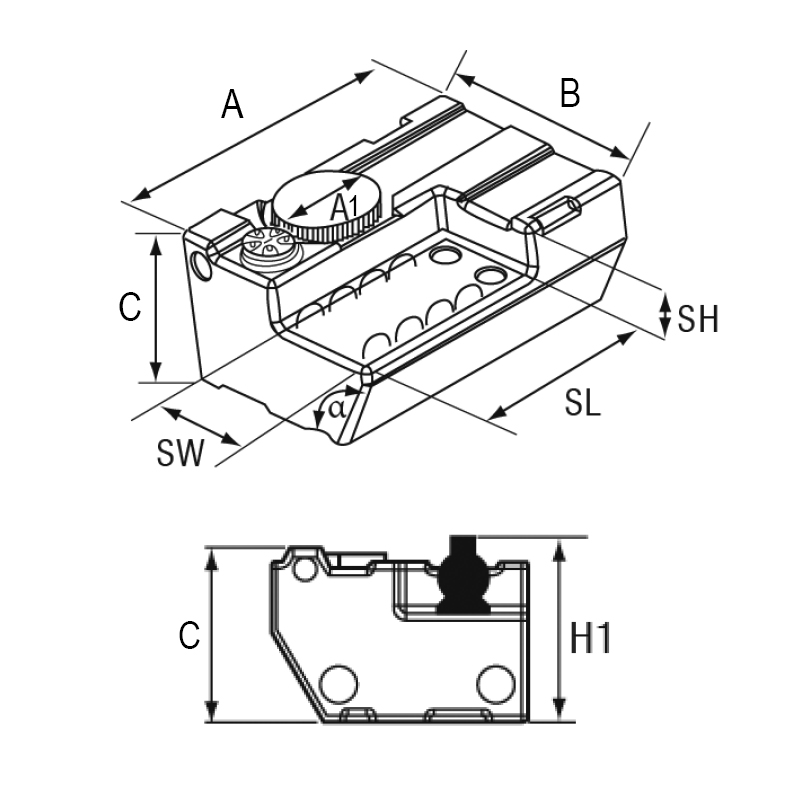

Code Title Type Capacity Length Width Height H SL SW SH ØA Angle Flow Rate
196887 BORA Tank Fresh Water 40lt Base Base Tank 40 lt 545 mm 400 mm 270 mm - 350 mm 200 mm 80 mm 133.5 mm 120° -
196888 BORA Tank Fresh Water 60lt Base Base Tank 60 lt 775 mm 400 mm 270 mm - 350 mm 200 mm 80 mm 133.5 mm 120° -
196889 BORA Tank Fresh Water 80lt Base Base Tank 80 lt 1005 mm 400 mm 270 mm - 350 mm 200 mm 80 mm 133.5 mm 120° -
196890 BORA Tank Fresh Water 100lt Base Base Tank 100 lt 1245 mm 400 mm 270 mm - 350 mm 200 mm 80 mm 133.5 mm 120° -
196895 BORA Tank Fr. Water 40lt, w/Pump 12V, 8lt/min Tank with Pump 40 lt 545 mm 400 mm 270 mm 300 mm 350 mm 200 mm 80mm 133.5 mm 120° 8 lt/min
196896 BORA Tank Fr. Water 60lt, w/Pump 12V, 8lt/min Tank with Pump 60 lt 775 mm 400 mm 270 mm 300 mm 350 mm 200 mm 80 mm 133.5 mm 120° 8 lt/min
196897 BORA Tank Fr. Water 80lt, w/Pump 12V, 8lt/min Tank with Pump 80 lt 1005 mm 400 mm 270 mm 300 mm 350 mm 200 mm 80 mm 133.5 mm 120° 8 lt/min
196898 BORA Tank Fr. Water 100lt, w/Pump 12V, 8lt/min Tank with Pump 100 lt 1245 mm 400 mm 270 mm 300 mm 350 mm 200 mm 80 mm 133.5 mm 120° 8 lt/min
197062 BORA Tank Fr. Water 60lt, w/Pump 12V, 12.5lt/min Tank with Pump 60 lt 775 mm 400 mm 270 mm 280 mm 350 mm 200 mm 80 mm 133.5 mm 120° 12.5 lt/min
197063 BORA Tank Fr. Water 80lt, w/Pump 12V, 12.5lt/min Tank with Pump 80 lt 1005 mm 400 mm 270 mm 280 mm 350 mm 200 mm 80 mm 133.5 mm 120° 12.5 lt/min
197064 BORA Tank Fr. Water 100lt, w/Pump 12V, 12.5lt/min Tank with Pump 100 lt 1245 mm 400 mm 270 mm 280 mm 350 mm 200 mm 80 mm 133.5 mm 120° 12.5 lt/min
