Thru-Hulls with Flush Flange and Hose Barb, White

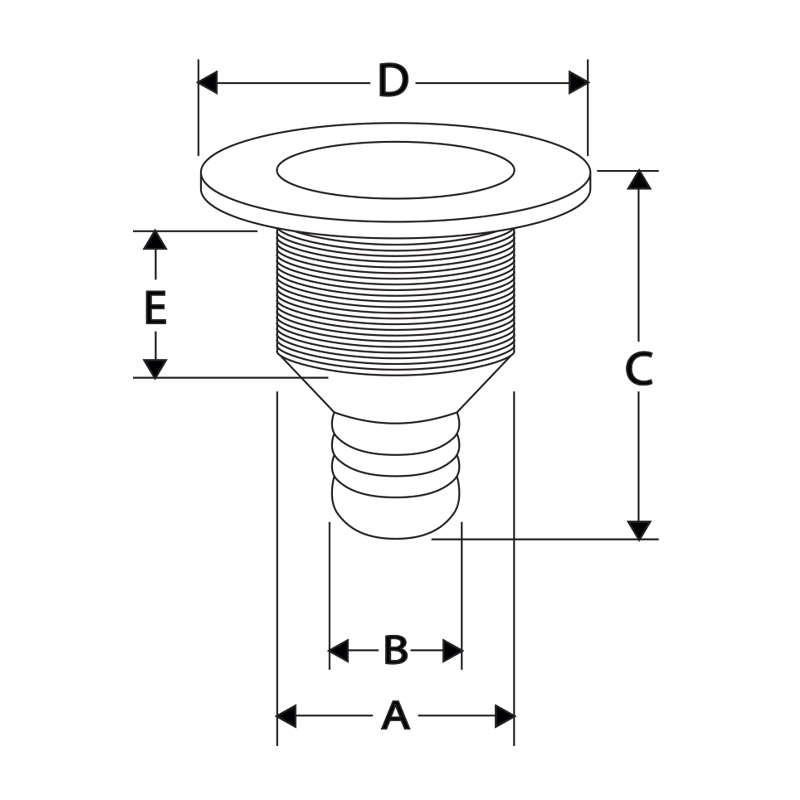

*Thread ØA According to BSP thread dimensions
| Code | Title | Colour | ØA | ØB | C | ØD | E | Material |
|---|---|---|---|---|---|---|---|---|
10250
|
Thru-Hull w/Fl.Flange, 1'', f/Hose Ø19mm, L81mm,White | White | 1'' inch | 19mm | 81mm | 45mm | 36mm | PP |
|
10251
|
Thru-Hull w/Fl.Flange, 1'' f/Hose Ø25mm, L81mm, White | White | 1'' inch | 25mm | 81mm | 45mm | 36mm | PP |
|
10252
|
Thru-Hull w/Fl.Flange,1½'' f/Hose Ø32mm, L98mm, White | White | 1 1/2'' inch | 32mm | 98mm | 73mm | 50mm | PP |
|
10253
|
Thru-Hull w/Fl.Flange,1 ½'' f/Hose Ø38mm, L93mm,White | White | 1 1/2'' inch | 38mm | 93mm | 73mm | 48mm | PP |
|
10256
|
Thru-Hull w/Non-ret. Valve, for Ø32mm Hose, White | White | 1 1/2'' inch | 32mm | 93mm | 73mm | 50mm | PP |
|
10257
|
Thru-Hull w/Non-ret. Valve, for Ø38mm Hose, White | White | 1 1/2'' inch | 38mm | 93mm | 73mm | 48mm | PP |
