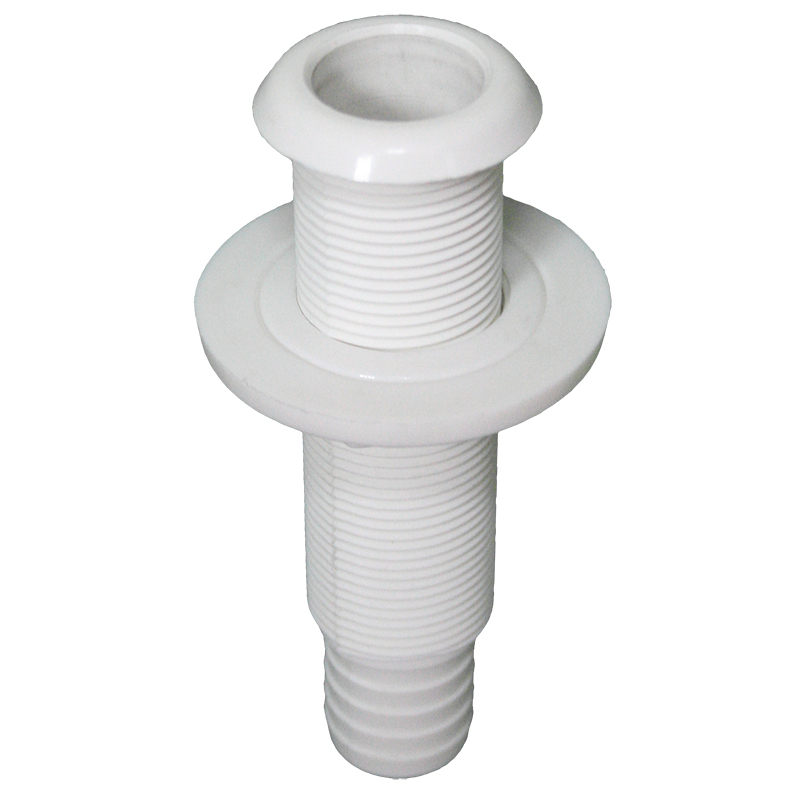

Thru-Hull Threaded with Standard Flange and Hose Barb

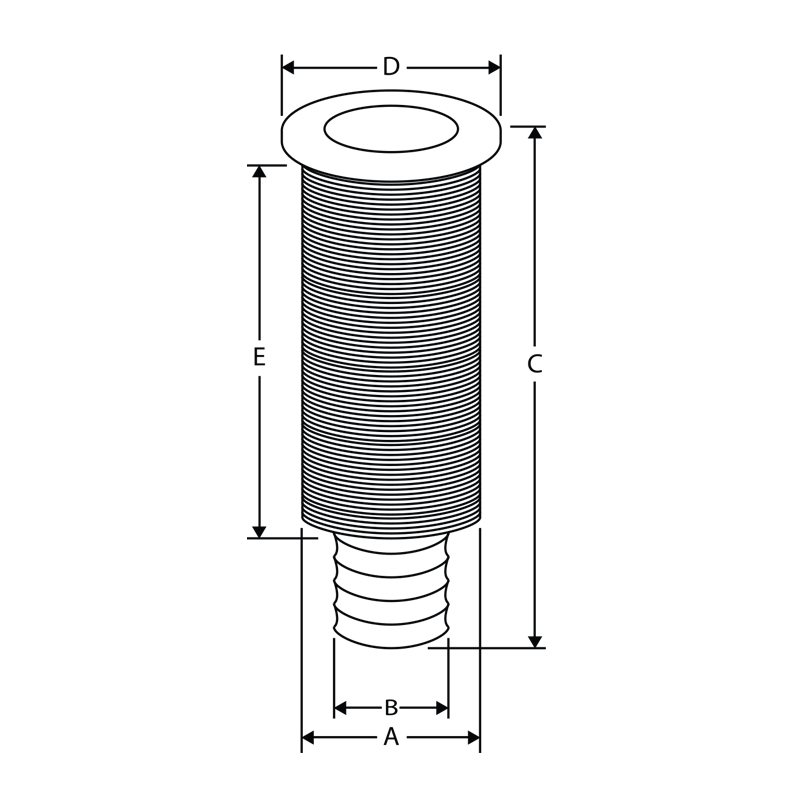

*Thread ØA According to BSP thread dimensions
| Code | Title | Colour | ØA | ØB | C | ØD | E | Material |
|---|---|---|---|---|---|---|---|---|
43508
|
Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm,White | White | 7/8" (30mm) | 25mm | 100mm | 40mm | 70mm | PA |
|
43509
|
Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm, Grey | Grey | 7/8" (30mm) | 25mm | 100mm | 40mm | 70mm | PA |
|
43510
|
Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm, Black | Black | 7/8" (30mm) | 25mm | 100mm | 40mm | 70mm | PA |
|
43543
|
Thru-Hull w/St.Flange, 1'', w/Hose Barb Ø30mm, White | White | 1'' | 30mm | 100mm | 42mm | 70mm | PA |
|
43544
|
Thru-Hull w/St.Flange, 1'', w/Hose Barb Ø30mm, Grey | Grey | 1'' | 30mm | 100mm | 42mm | 70mm | PA |
|
43545
|
Thru-Hull w/St.Flange, 1'', w/Hose Barb Ø30mm, Black | Black | 1'' | 30mm | 100mm | 42mm | 70mm | PA |
|
47757
|
Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm, Cream | Cream | 7/8" (30mm) | 25mm | 100mm | 40mm | 70mm | PA |
95793
|
Thru-Hull St.Flange, 7/8'', f/Hose Ø25mm, L126mm,White | White | 7/8" (30mm) | 25mm | 126mm | 40mm | 92mm | PP |
