Thru-Hull Threaded with Standard Flange

Thru-Hull Threaded with Standard Flange
Click here to zoom!

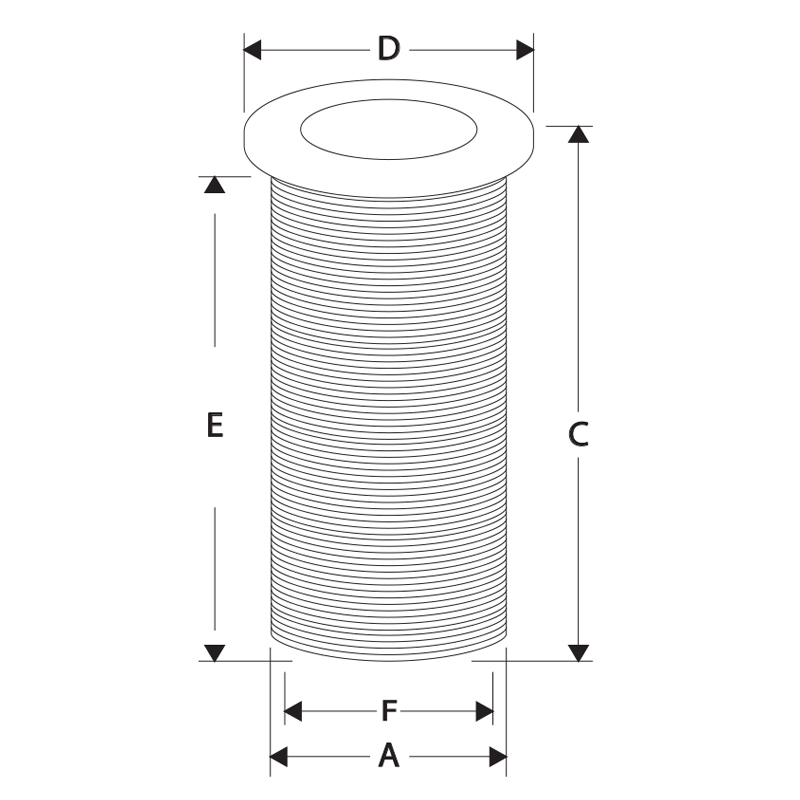

*Thread ØA According to BSP thread dimensions

Code Title Colour ØA C ØD E ØF Material
195527 Thru-Hull Stand.Flange, 3/4'',Int.Ø15mm, L153mm,White White 25 mm 153 mm 39 mm 148 mm 15 mm PA
196073 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L76mm, Black Black 33 mm 76 mm 42 mm 70 mm 25 mm PA
198067 Thru-Hull Stand.Flange, 3/4'',Int.Ø15mm, L153mm, Black Black 25 mm 153 mm 39 mm 148 mm 15 mm PA
43489 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L62mm,White White 30 mm 62 mm 39 mm 58 mm 22 mm PA
43490 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L62mm, Grey Grey 30 mm 62 mm 39 mm 58 mm 22 mm PA
43491 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L62mm, Black Black 30 mm 62 mm 39 mm 58 mm 22 mm PA
43497 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L155mm,White White 30 mm 155 mm 39 mm 150 mm 22 mm PA
43498 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L155mm,Grey Grey 30 mm 155 mm 39 mm 150 mm 22 mm PA
43499 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L155mm,Black Black 30 mm 155 mm 39 mm 150 mm 22 mm PA
43527 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L62mm, White White 33 mm 62 mm 40 mm 58 mm 25 mm PA
43528 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L62mm, Grey Grey 33 mm 62 mm 40 mm 58mm 25 mm PA
43529 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L62mm, Black Black 33 mm 62 mm 40 mm 57 mm 25 mm PA
43535 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L155mm, White White 33 mm 155 mm 39 mm 150 mm 25 mm PA
43536 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L155mm, Grey Grey 33 mm 155 mm 39 mm 150 mm 25 mm PA
43537 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L155mm, Black Black 33 mm 155 mm 39 mm 150 mm 25 mm PA
47122 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L76mm, White White 33 mm 76 mm 42 mm 70 mm 25 mm PA
47755 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L62mm, Cream Cream 30 mm 62 mm 39 mm 58 mm 22 mm PA
47756 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L155mm,Cream Cream 30 mm 155 mm 39 mm 150 mm 22 mm PA
47758 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L62mm, Cream Cream 33 mm 62 mm 40 mm 58 mm 25 mm PA
