Marking Buoys Cylindrical

Made of rigid plastic. A metal eyelet reinforces the ring. Available in two filling options: empty or foam filled. Designed & produced in Italy.


Code	Title	Use	Colour	Description	External Diameter	Internal Diameter	H	H2	ØA	Buoyancy

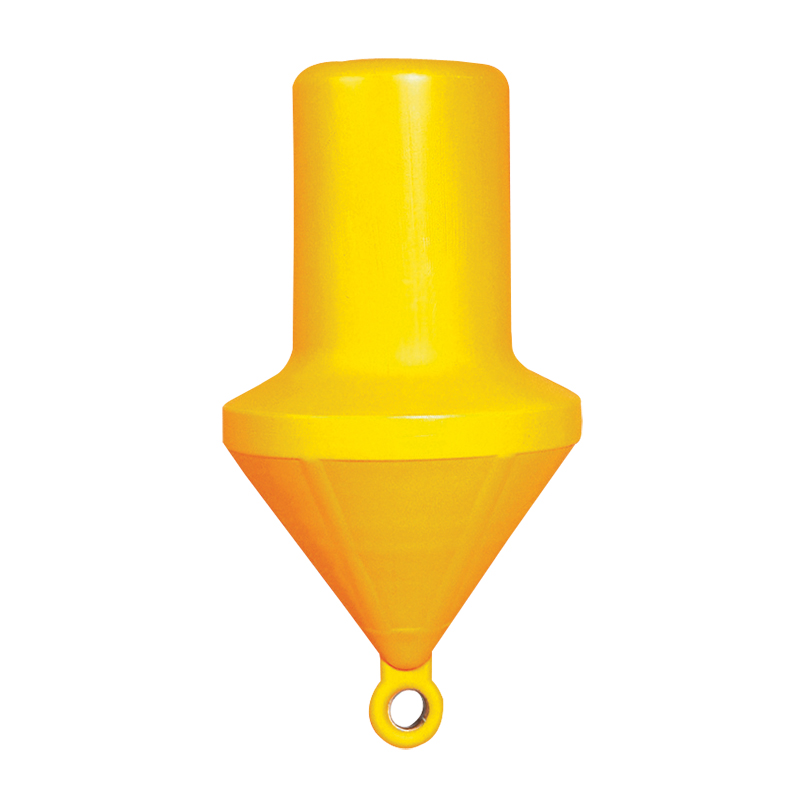

16433	Marking Buoy, Cylindrical, Ext.Ø400mm, Yellow	Portside channel marking	Yellow	empty	400 mm	250 mm	740 mm	363 mm	38mm	overall:38kg/ in use:14kg
16434	Marking Buoy, Cylindrical, Foam Filled, Ext.Ø400mm, Yellow	Portside channel marking	Yellow	foam	400 mm	250 mm	740 mm	363 mm	38 mm	overall:36kg/ in use:12kg
16436	Marking Buoy, Cylindrical, Foam Filled, Ext.Ø800mm, Yellow	Large size for channel entrance.Portside side	Yellow	foam	800 mm	510 mm	1610 mm	790 mm	55mm	overall 265kg/95kg

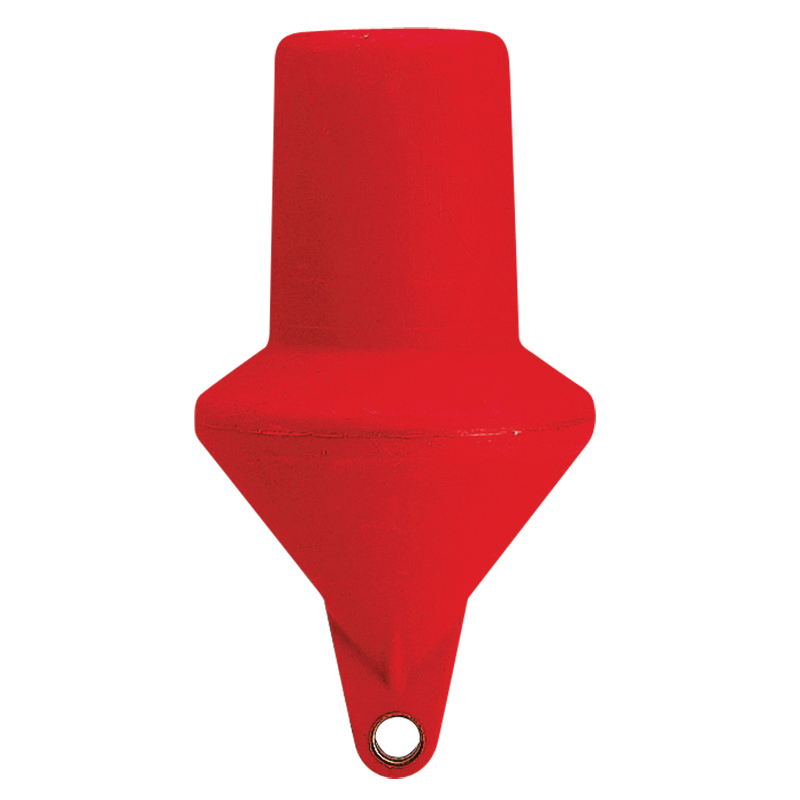

31312	Marking Buoy, Cylindrical, Foam Filled, Ext.Ø400mm, Red	Portside channel marking	Red	foam	400 mm	250 mm	740 mm	363 mm	38mm	overall:36kg/ in use:12kg
31928	Marking Buoy, Cylindrical, Ext.Ø400mm, Red	Portside channel marking	Red	empty	400 mm	250 mm	740 mm	363 mm	38mm	overall:38kg/ in use:14kg
35628	Marking Buoy, Cylindrical, Foam Filled, Ext.Ø800mm, Red	Large size for channel entrance.Portside side	Red	foam	800 mm	510 mm	1610 mm	790 mm	55mm	overall 265kg/95kg
43404	Marking Buoy, Cylindrical, Ext.Ø800mm, Yellow	Large size for channel entrance.Portside side	Yellow	empty	800 mm	510 mm	1610 mm	790 mm	55mm	overall 290kg/110kg
43405	Marking Buoy, Cylindrical, Ext.Ø800mm, Red	Large size for channel entrance.Portside side	Red	empty	800 mm	510 mm	1610 mm	790 mm	55mm	overall 290kg/110kg
