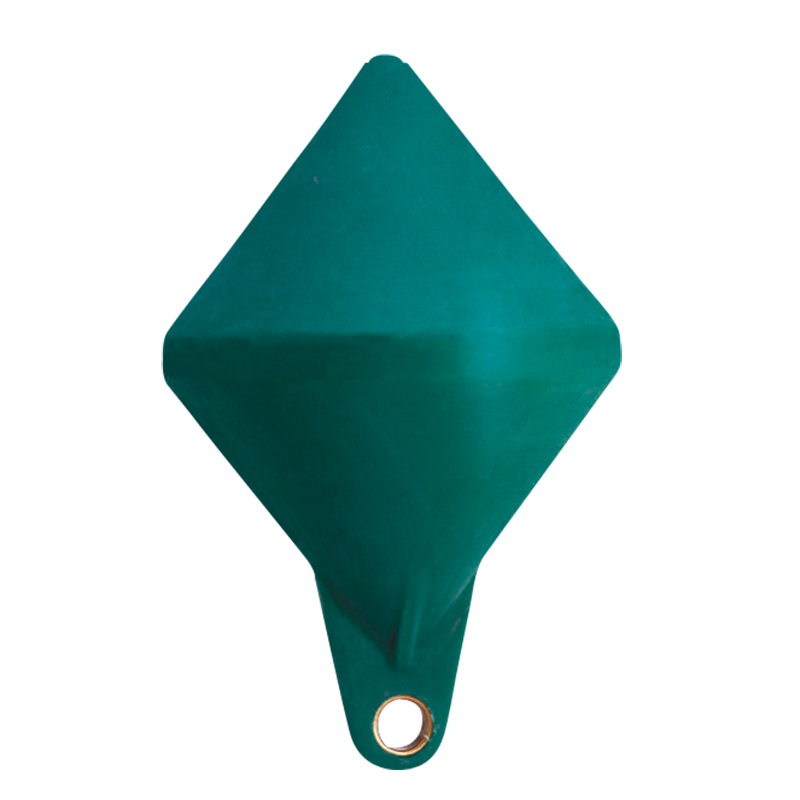

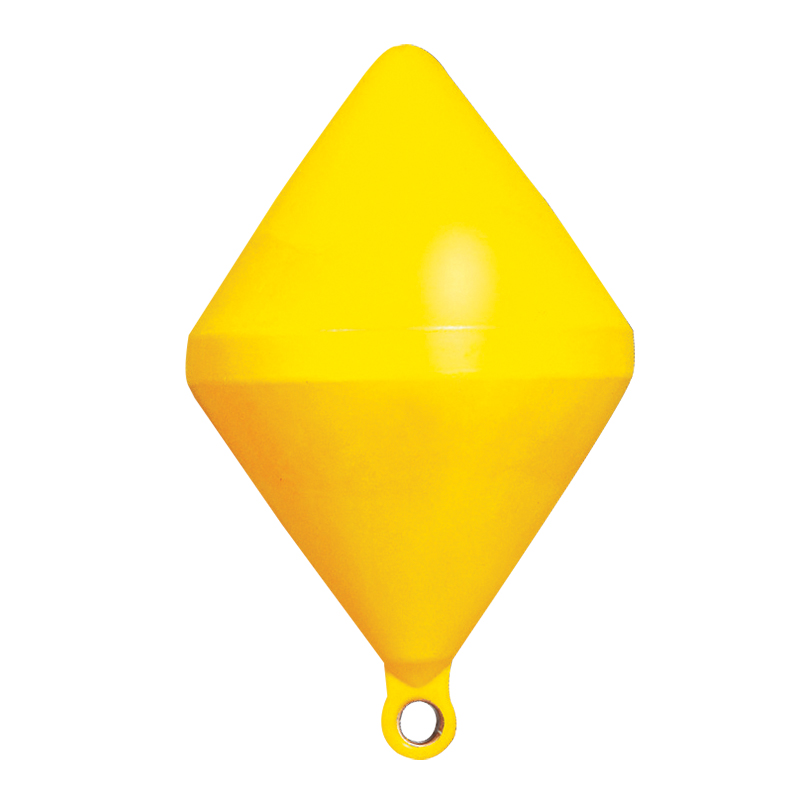

Marking Buoys Bi-Conical

Made of rigid plastic. A metal eyelet reinforces the ring. Available in two filling options: empty or foam filled. Designed & produced in Italy.

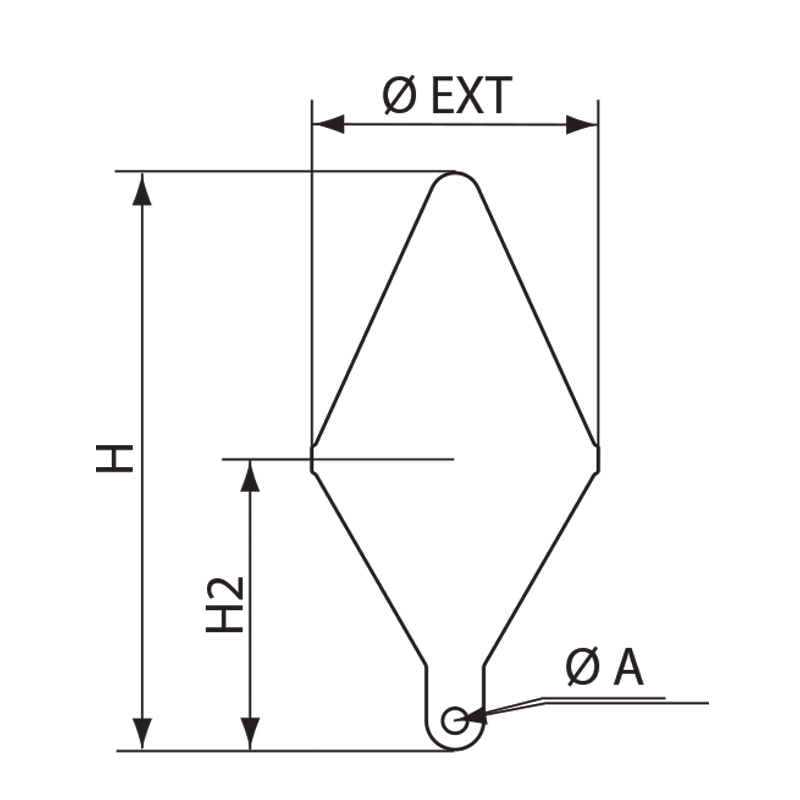

Code	Title	Use	Colour	Description	External Diameter	H	H2	ØA	Buoyancy
16440	Marking Buoy, Bi-conical, Ext.Ø400mm, Yellow	Starboard channel marking	Yellow	empty	400 mm	640 mm	363 mm	55mm	overall:30kg/ In use:14kg
16442	Marking Buoy, Bi-conical, Foam Filled, Ext.Ø400mm, Yellow	Starboard channel marking	Yellow	foam	400 mm	640 mm	363 mm	55mm	overall:28kg/in use:12kg
16443	Marking Buoy, Bi-conical, Foam Filled, Ext.Ø800mm, Yellow	Large size for channel entrance. Starboard size	Yellow	foam	800 mm	1610 mm	770 mm	55 mm	overall:190kg/in use:90kg
31311	Marking Buoy, Bi-conical, Foam Filled, Ext.Ø400mm, Green	Starboard channel marking	Green	foam	400 mm	640 mm	363 mm	55 mm	overall:28kg/ In use:12kg
31929	Marking Buoy, Bi-conical, Ext.Ø400mm, Green	Starboard channel marking	Green	empty	400mm	640 mm	363 mm	55 mm	overall:30kg/ In use:14kg
35629	Marking Buoy, Bi-conical, Foam Filled, Ext.Ø800mm, Green	Large size for channel entrance.Starboard size	Green	foam	800 mm	1610 mm	770 mm	55 mm	overall:190kg/in use:90kg
43418	Marking Buoy, Bi-conical, Ext.Ø800mm, Yellow	Large size for channel entrance.Starboard size	Yellow	empty	800 mm	1610 mm	770 mm	55 mm	overall:200Kg/in use:100Kg
43420	Marking Buoy, Bi-conical, Ext.Ø800mm, Green	Large size for channel entrance.Starboard size	Green	empty	800 mm	1610 mm	770 mm	55 mm	overall:200Kg/in use:100Kg
